ABA/AB Blown Film Machine For Agricultural Film

ABA/AB LDPE high-speed film blowing machine is a high-performance extrusion equipment, efficient, stable and energy-saving. It adopts ABA three-layer co-extrusion technology and can produce high-quality composite films with excellent physical properties and high transparency. It is widely used in packaging, agricultural and construction industries such as agricultural film, engineering film, bath film and so on.

PRODUCT DESCRIPTION

PRODUCT DESCRIPTION

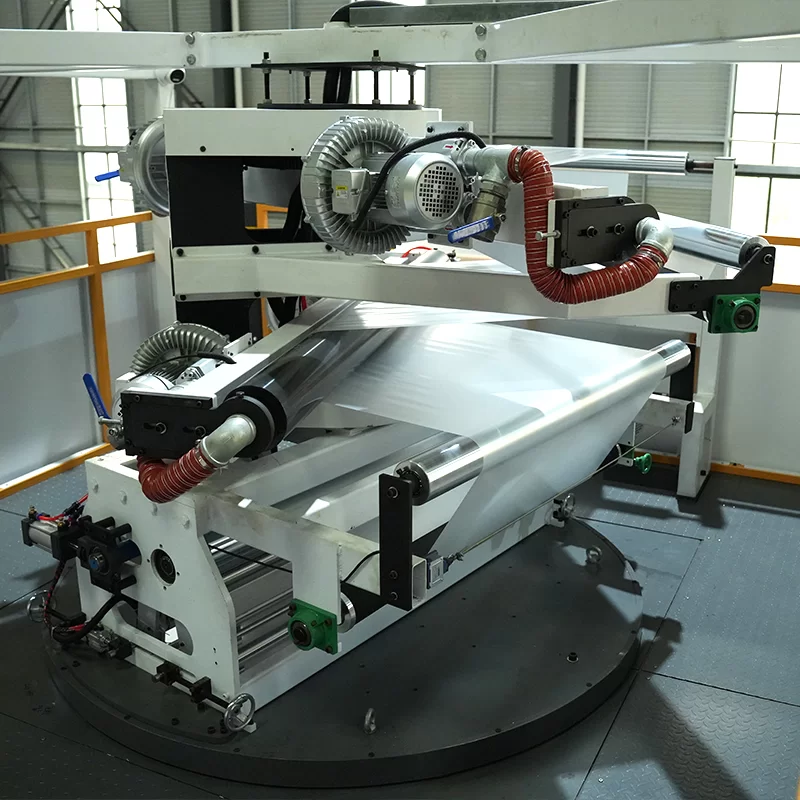

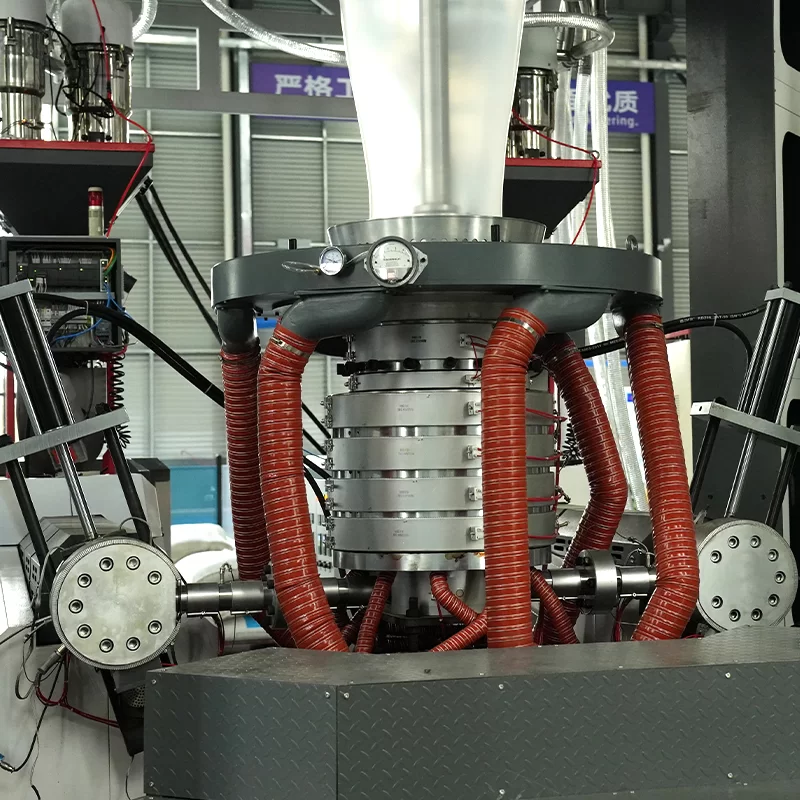

This ABA/AB blown film machine for agricultural film uses three-layer co-extrusion technology, and the middle layer is made of recycled material, which increases productivity and allows for the recycling of resources. Addition, this machine can be equipped with rotary die also could choose horizontal traction rotary.
Energy efficiency and energy saving
This ABA/AB blown film machine for agricultural film adopts advanced energy saving technology, greatly reducing production costs and improving productivity. The equipment is equipped with fully automatic system control, making operation easier and reducing the complexity of work.
Stability and customization
This ABA/AB blown film machine for agricultural film adopts high-precision structural and electronic control, which is stable and reliable, ensuring stable and smooth operation during the production process. The equipment can be customized according to the needs of different industries.

PRODUCT SPECIFICATION

Model	65/65-1600/1800	75/75-2200/2400	90-90/2600/2800	100-100/3200
Width of the film	1000-1400mm/1600mm	1200-2000mm/2200mm	1400-2400mm/2600mm	2000-3000mm
Thickness of the film	LDPE:0.02-0.15mm
Output	100-250kg/h	120-300kg/h	140-420kg/h	160-500kg/h
Output	According to different width, thickness of film,die size and raw material characteristics to change
Raw material	HDPE LDPE LLDPE CACO3 RECYCLING
Diameter of screw	Φ65/65	Φ75/75	Φ90/90	Φ100/100
L/D ratio of screw	32:1 (With force feeding)
Gear box	200# *2	225# *2	250#*2	315#*2
Main motor	37kw*2	45kw*2	55kw*2	75kw*2
Die diameter	Φ350mm	Φ500/550mm	Φ550/650mm	Φ750mm

Above parameters only for reference,could be customized according to customer needs,detailed data pls check actual object
