Vertical Traction Rotary Aba Blown Film Line

Vertical Traction Rotary Aba Blown Film Line

High speed ABA vertical rotary film blowing machine is a innovate device that not only produce HDPE plastic film, also LDPE.Importantly, it solve the leakage problems of rotary die head. the vertical rotary film blowing machine suitable for produce film width from 700mm to 1200mm. And the film produced by the ABA vertical rotary film blowing machine is more even, and the winding also more neat.


PRODUCT DESCRIPTION
  • Machine Advantage

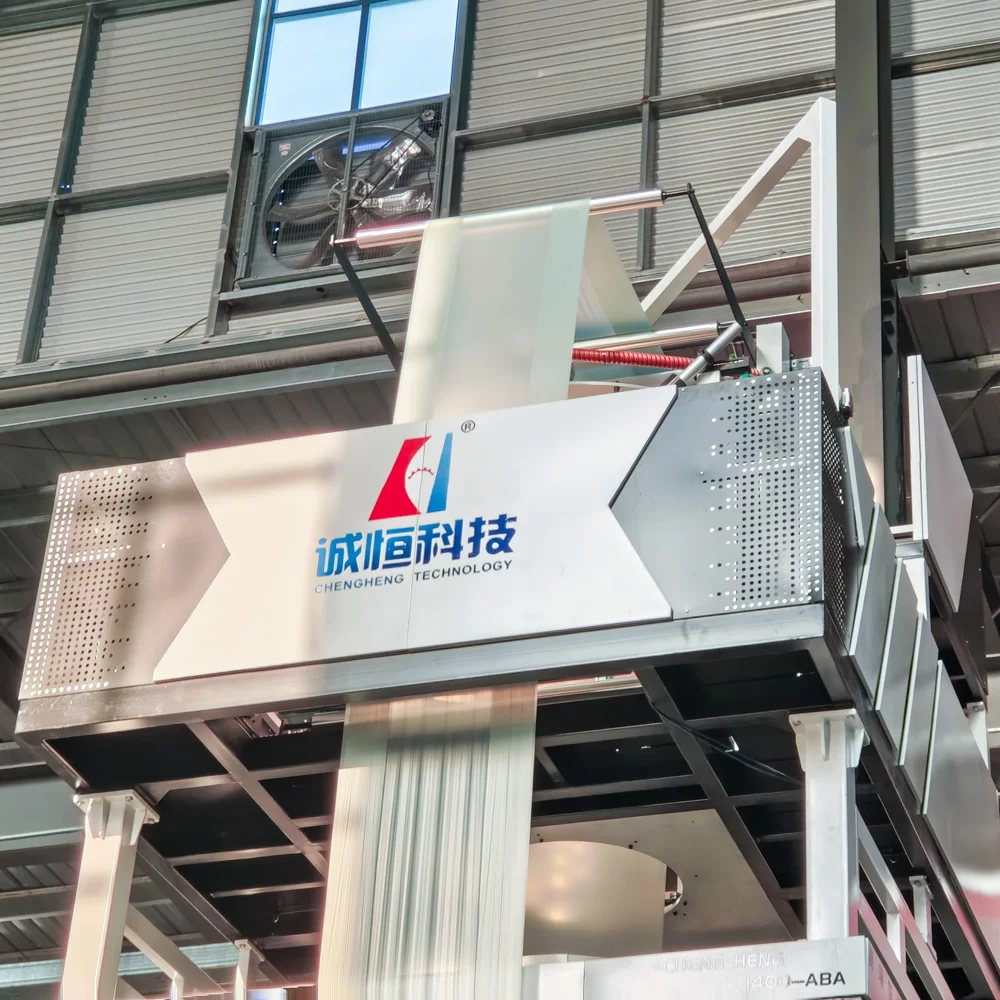

    Vertical traction rotary blown film machine adopts vertical traction device, so that the film thickness is more uniform. Compared with rotary die, vertical traction device solves the problem of oil and granule leakage. To a certain extent, the winding of this machine is very neat, and there will be no phenomenon of tendon rupture.
  • Wider Applicability
    High Speed ABA vertical traction rotary film blowing machine compensates for the disadvantage that the rotary mold can not produce high density polyethylene, it can not only produce low density polyethylene plastic. The height of the ABA high speed vertical rotary film blowing machine is similar to the ordinary machine, and there is no need to worry about the height of the warehouse.
  • Easy to operate

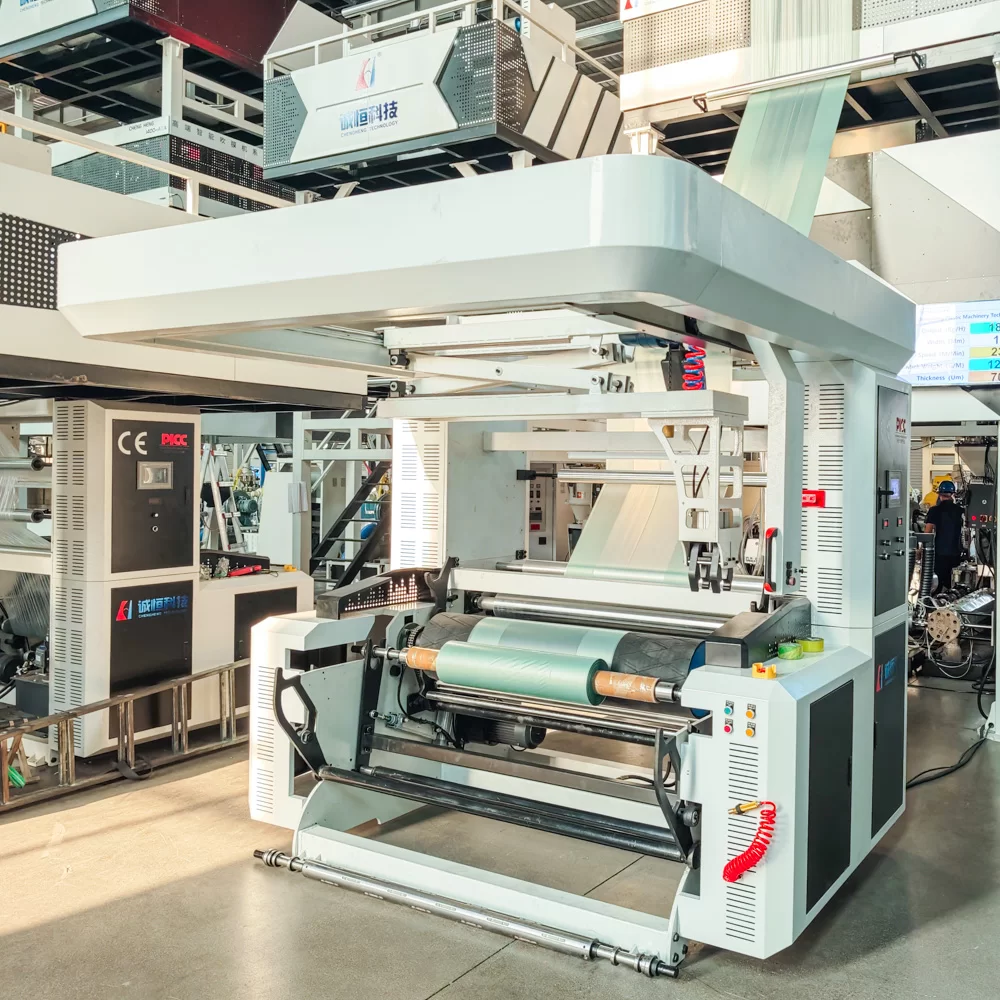

    For most workers, this ABA high-speed vertical rotary film blowing machine is easy to operate, safe, convenient and durable. Its winding has the function of automatic unloading, which saves labor. The machine has a modular design, which makes it easy to assemble and disassemble. The maintenance of the machine is also simple, all the main components are easily accessible for cleaning and maintenance.
  • Application
    ABA high speed vertical rotary film blowing machine is suitable for all kinds of plastic bags.
PRODUCT SPECIFICATION

Model

45/45-900

50/50-1200

Width of the film

200-700mm

500-1000mm

Thickness of the film

HDPE:0.008-0.08mm  LDPE:0.02-0.15mm

Output

25-120kg/h

40-160kg/h

According to different width, thickness of film,die size and raw material characteristics to change

Raw material

HDPE LDPE LLDPE CACO3 RECYCLING

Diameter of screw

Φ45/45

Φ50/50

L/D ratio of screw

32:1 (With force feeding)

Gear box

146#*2

173#*2

Main motor

15kw

18.5KW

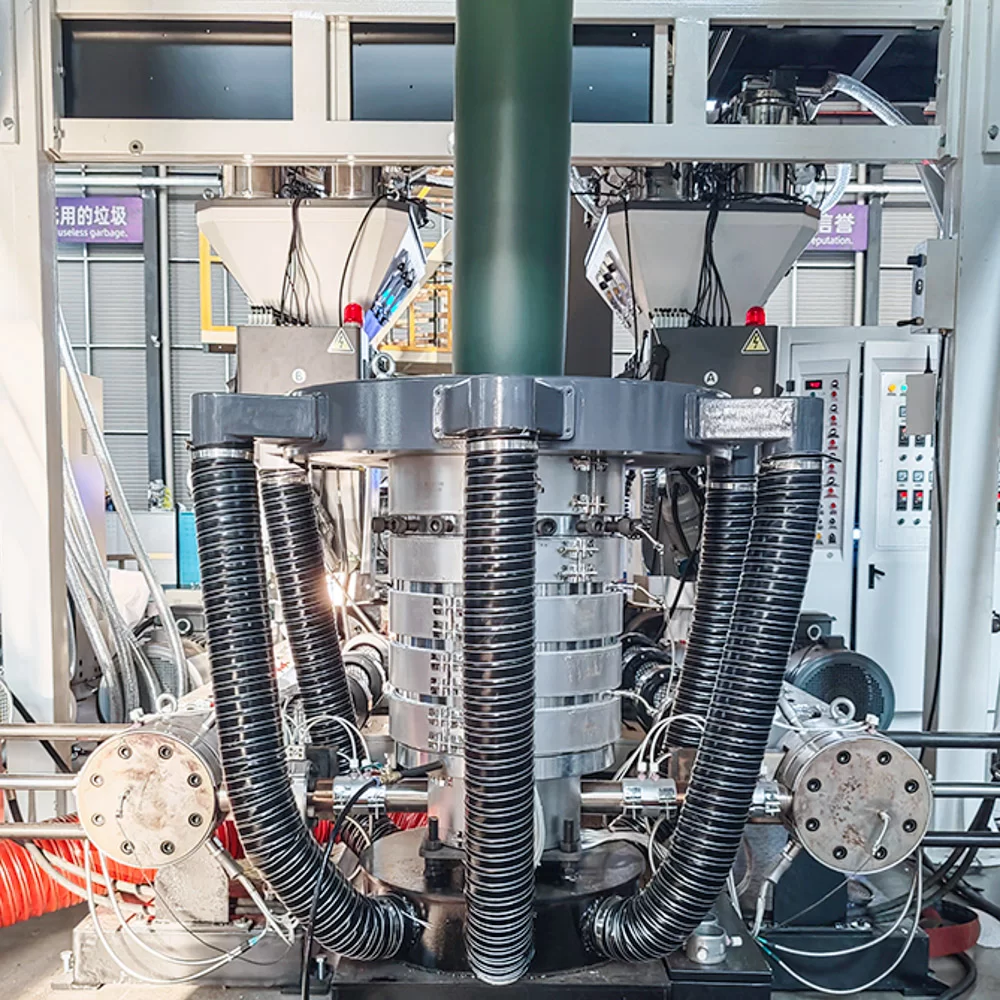

Die diameter

Φ80/150mm

Φ100mm/250mm


Above parameters only for reference, could be customized according to customer needs, detailed data pls check actual object
