Mono Layer Film Blowing Machine For Agricultural Film

Mono Layer Film Blowing Machine For Agricultural Film

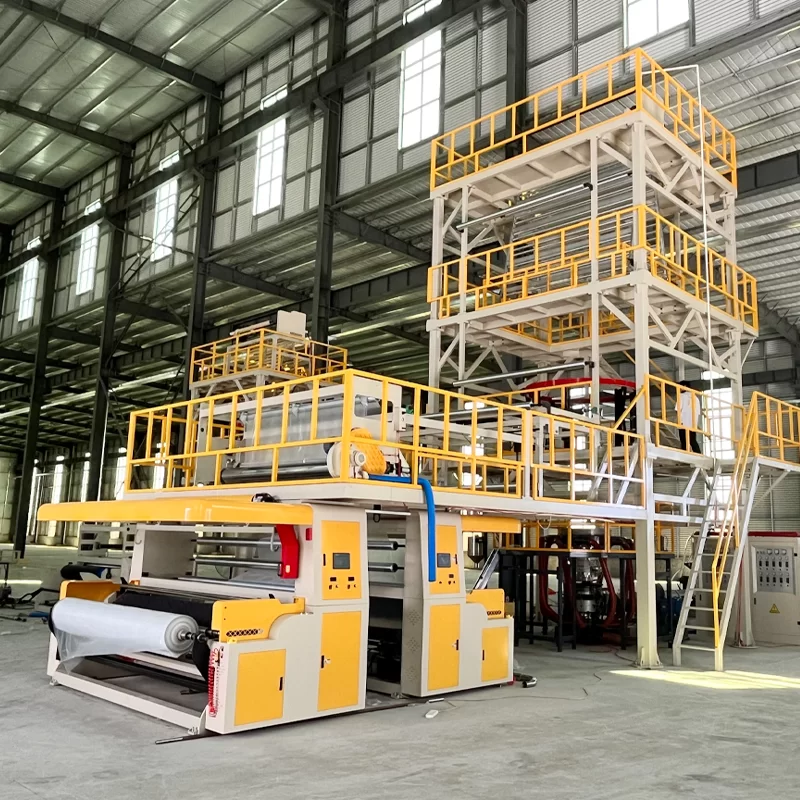

High speed mono-layer LDPE film blowing machine is a popular machine that has been designed from the ground up with efficiency and productivity in mind.It delivers superior performance, reliability, and operational ease, making it an ideal solution for industries looking to streamline their production processes and boost their output.


Product Description

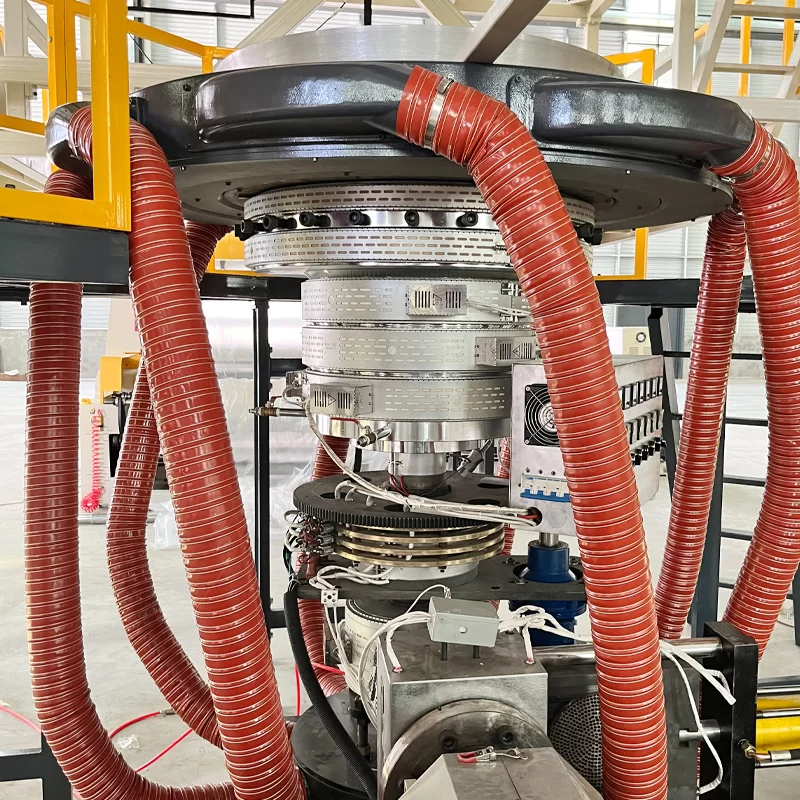

  • High speed mono-layer LDPE film blowing machine also boasts an weight control system that provides precise control over the production process.Its screw with force feeding and with water cooling , which avoid the phenomenon of bridging, and the feeding is uniform.And water cooling speeds up the temperature in the heating zone. And this mono-layer LDPE film blowing machine adopt double groove screw, better plasticizing effect, higher yield, more durable.
  • The machine is easy to install and integrate into existing production lines, with minimal downtime. Its high output rate and superior product quality make it ideal for large-scale productions, enabling producers to maximize their profits.

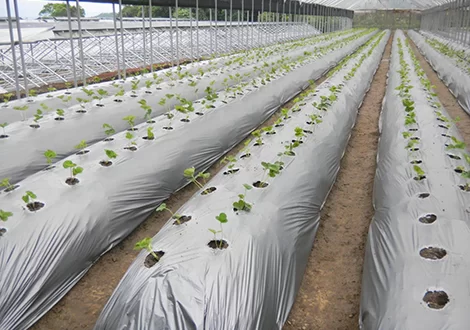

  • It is used to produce greenhouse films, ground films, large agricultural films and other products. The thickness and width of the film can be flexibly adjusted according to actual needs to adapt to different product requirements. The products produced have strong tensile strength and are not easy to break. They have many advantages such as high output, low energy consumption, and long service life, which can meet all the needs of users.
PRODUCT SPECIFICATION

Model

55-1200

65-1400

Width of the film

600-1000mm

800-1200mm

Thickness of the film

HDPE:0.008-0.08mm  LDPE:0.02-0.15mm

Output

30-120kg/h

40-150kg/h

According to different width, thickness of film,die size and raw material characteristics to change

Raw material

HDPE/MDPE/LDPE/LLDPE/CACO3/RECYCLING

Diameter of screw

Φ55

Φ65

L/D ratio of screw

32:1 (With force feeding)

Gear box

180#

200#

Main motor

22kw

37kw

Die diameter

Φ100/250mm

Φ150/300mm


Above parameters only for reference, could be customized according to customer needs, detailed data pls check actual object
