Double Color Film Blowing Machine

Double Color Film Blowing Machine

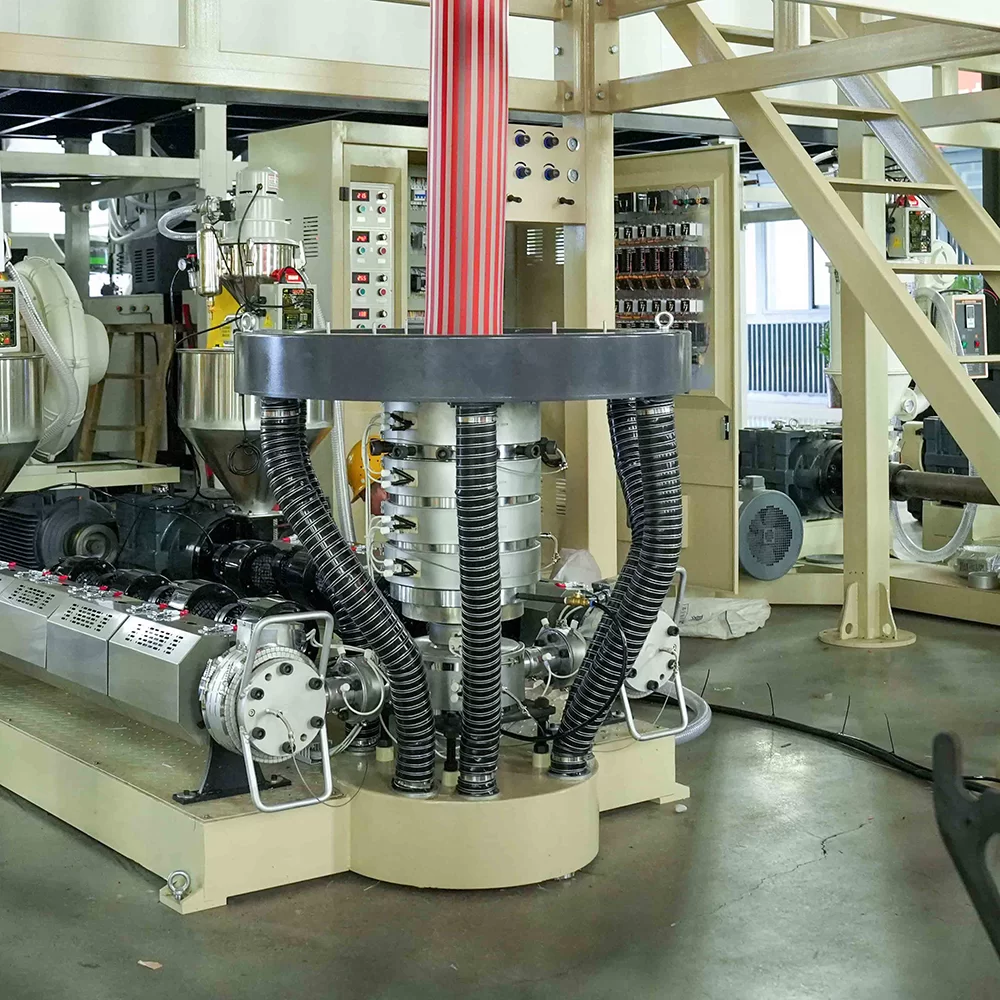

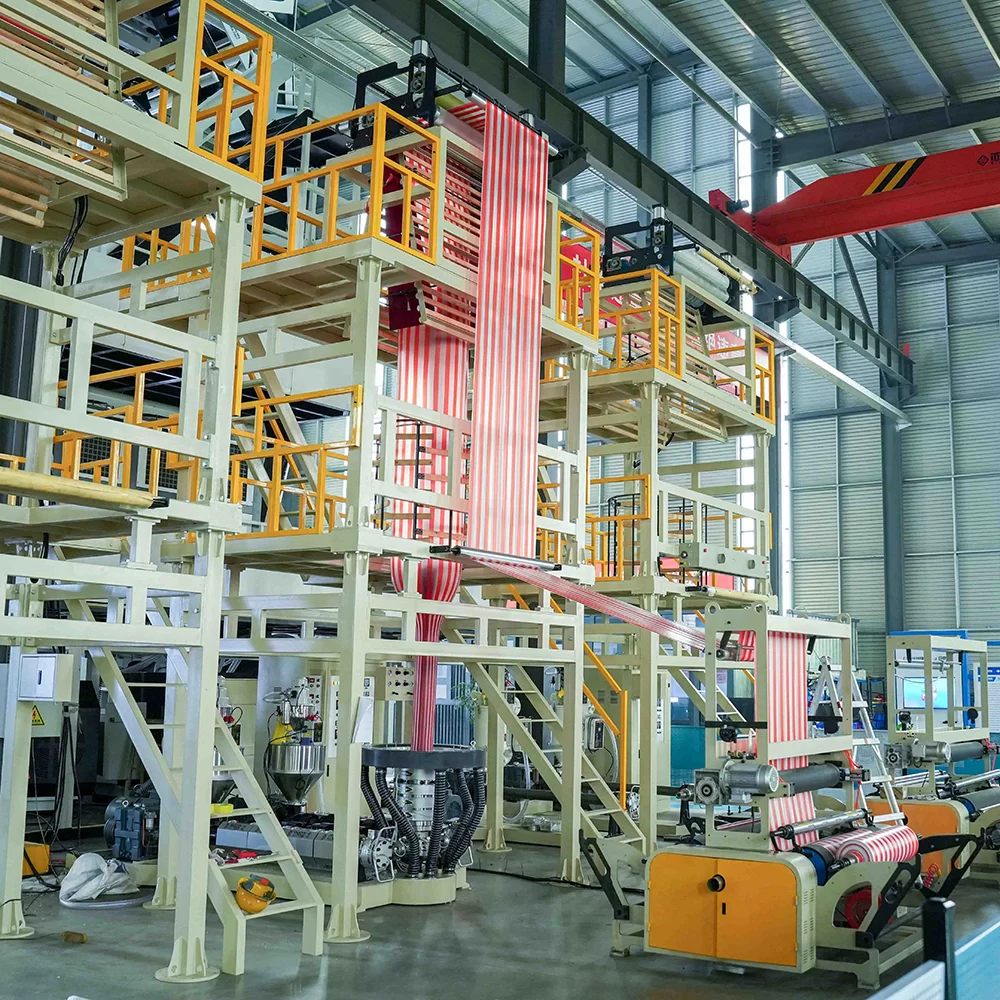

Double color film blowing machine is composed with two screw and one die head,it adopts the device of two different plastic materials,which can blow different kinds of striped vest bags(shopping bag),it can get colorful bags without printing,with features such as beautiful colors,average stripe , logical structure , advance technology , even rewinding and high output.


Product Description
  • Product Description
    This two-color film blowing machine is designed for blowing supermarket bags, T-shirt bags, shopping bags, and other products such as tablecloths. The A+B extruder can produce single layers of film in different colors, or double layers (one layer made of recycled material and the other made of virgin material), reducing production costs.
  • Film Quality
    High-quality film products, with smooth surface and excellent toughness.High production efficiency, which can greatly improve production efficiency and reduce production costs.
  • Advantage

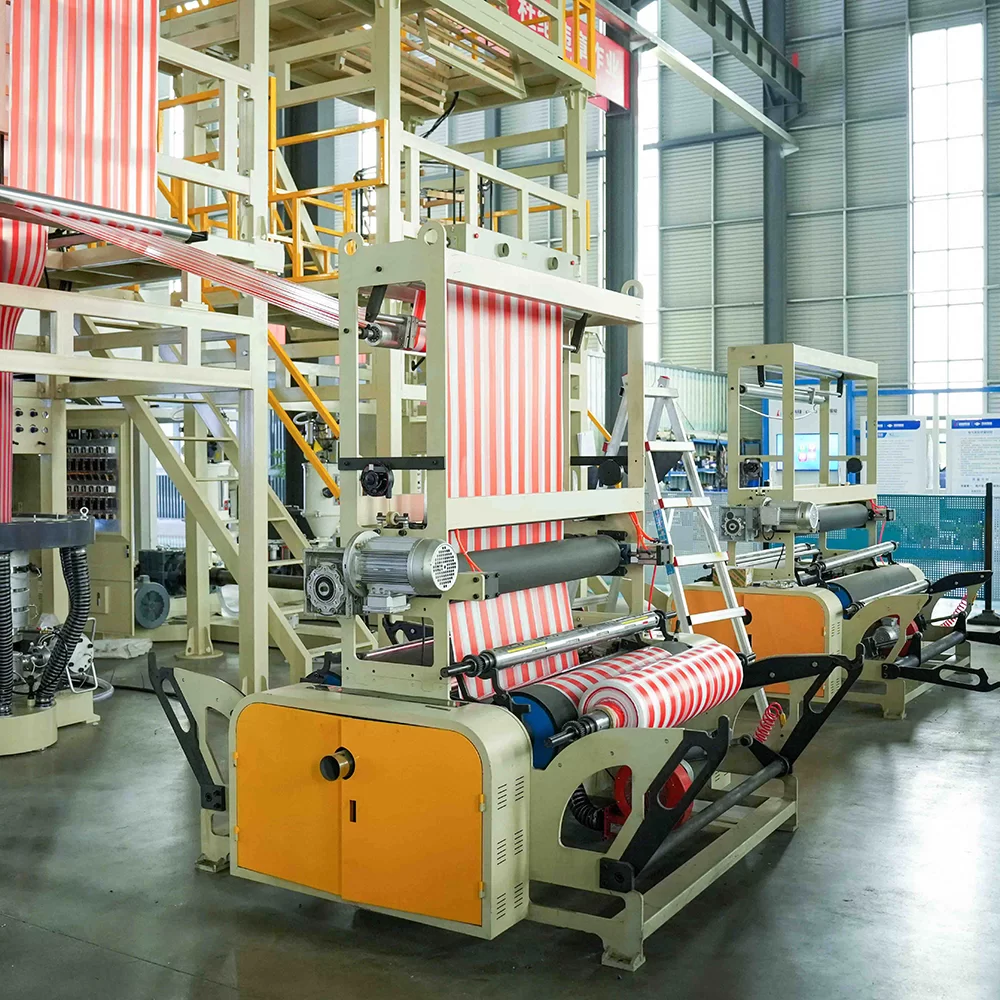

    The service life of the screw can reach 3-5 times that of ordinary screws. The winder adopts inverter motor to maintain proper tension, winding orderly and easy to change the roll. Most importantly, the winder can achieve automatic roll discharge. To a certain extent, this machine not only saves raw materials and internal friction, but also saves labor, and is very popular with customers.
PRODUCT SPECIFICATION

Model

45/45-700

50/50-900

55/55-1200

Width of the film

300-550mm

400-800mm

600-1000mm

Thickness of the film

HDPE:0.006-0.08mm  LDPE:0.02-0.12mm

Output

30–120kg/h

30-160kg/h

50-240kg/h

According to different width, thickness of film,die size and raw material characteristics to change

Raw material

HDPE/MDPE/LDPE/LLDPE/CACO3/RECYCLING

Diameter of screw

Φ45*2

Φ50*2

Φ55*2

L/D ratio of screw

32:1(With force feeding)

Gear box

146#

173#

180#

Main motor

15kw*2

18.5kw*2

22kw*2

Die diameter

Φ80/120mm

Φ100/150mm

Φ150/220mm


Above parameters only for reference, could be customized according to customer needs, detailed data pls check actual object
