High speed 3 Layer ABC Blown Film Production Line

High speed 3 Layer ABC Blown Film Production Line

High speed ABC three layers film blowing machine is a high-performance, versatile, and energy-efficient device that can meet the demands of modern packaging industry. It features advanced technology, easy customization, and excellent productivity that can make your production processes more efficient and cost-effective.


Product Description
  • Description

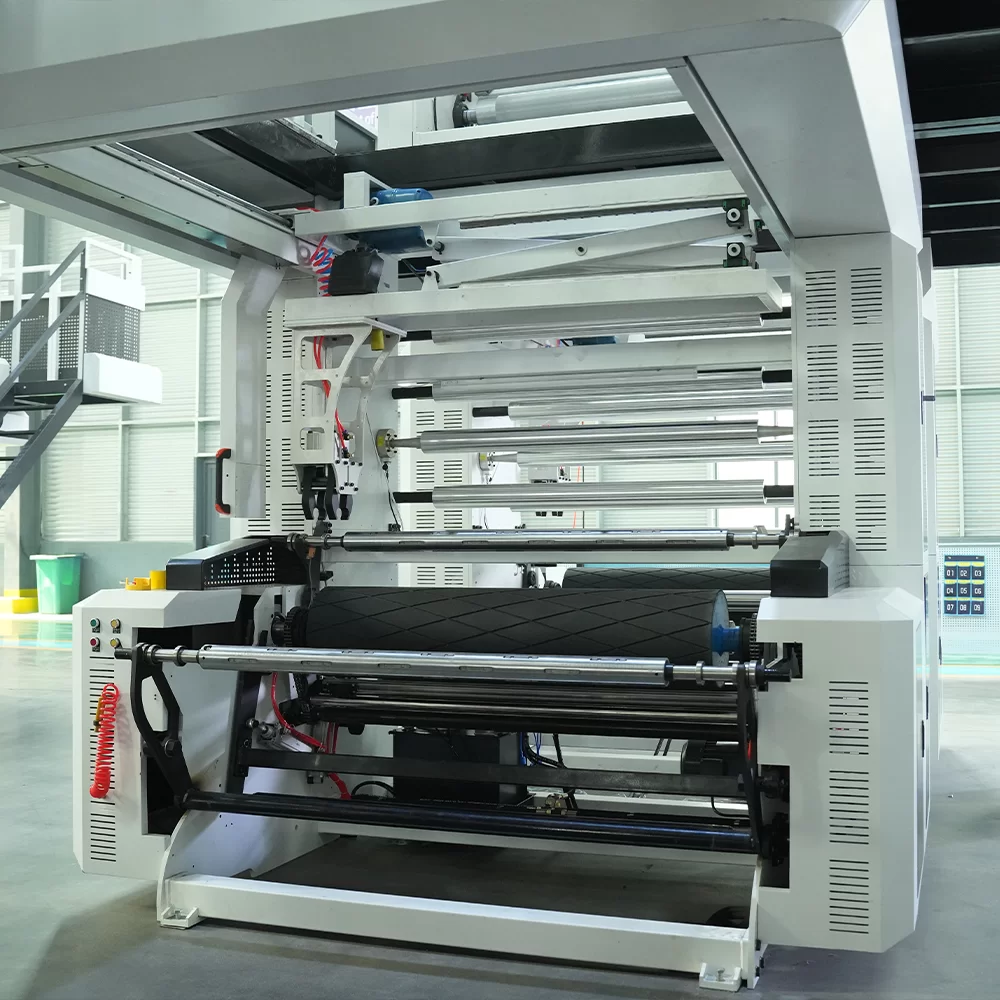

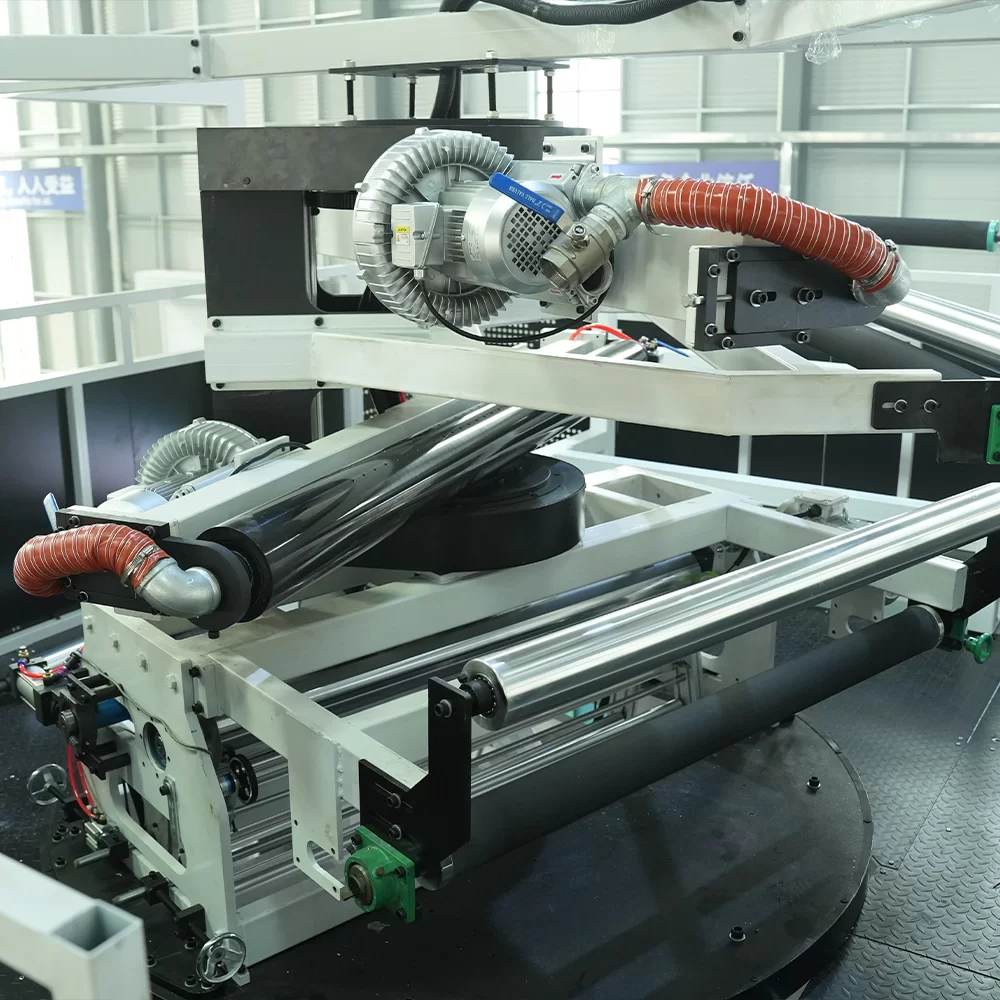

    High speed ABC three layers film blowing machine is a practical device that can produce a wide range of films for various packaging applications. This machine is equipped haul-off tower rotary that make the film thickness more even. EPC(Edge position control)device help the winding more neat.
  • Long lifetime
    All ABC three layer film blowing machine adopt dual-alloy forced-feeding screws that feature excellent hardness and wear resistance. It can still plasticize a large number of particles under an environment of high speed and high pressure. The service life can reach 3-5 times of ordinary screws.High speed ABC three layers film blowing machine  also offers excellent flexibility and customization options. It can produce a variety of films such as LDPE, LLDPE, and HDPE films, and features a multi-layer co-extrusion option that can produce films with enhanced properties such as improved strength .
  • Advantage
    One of the key advantages of this machine is its energy efficiency. With a low power consumption, it helps you save on operating costs and reduces your carbon footprint. It also offers high levels of automation and reliability that can help you streamline your production processes and improve your product quality.
  • Application
    High speed ABC three layers film blowing machine can be used for a wide range of packaging applications, such as food packaging, pharmaceuticals, and consumer goods. Its advanced features and customization options make it suitable for both large-scale and small-scale production needs. Overall, High speed ABC three layers film blowing machine is a versatile, high-performance and energy-efficient product that offers advanced technology, easy customization, and excellent productivity that can meet the demands of modern packaging industry.
Product Description

Model

50-55-50/1400

55-65-55/1600/1800

65-75-65/2400

Width of the film

600-1200mm

800-1400/1000-1600mm

1500-2200mm

Thickness of the film

0.02-0.2mm

Output

250kg/h

300kg/h

380kg/h

According to different width, thickness of film,die size and raw material characteristics to change

Raw material

HDPE/LDPE/LLDPE/MDPE/EVA

Diameter of screw

Φ50/55/50

Φ55/65/55

Φ65/75/65

L/D ratio of screw

32:1 (With force feeding)

Gear box

173# 180# 173#

180# 200# 180#

200# 225# 200#

Main motor

18.5kw/30kw/18.5kw

22kw/37kw/22kw

37kw/45kw/37kw

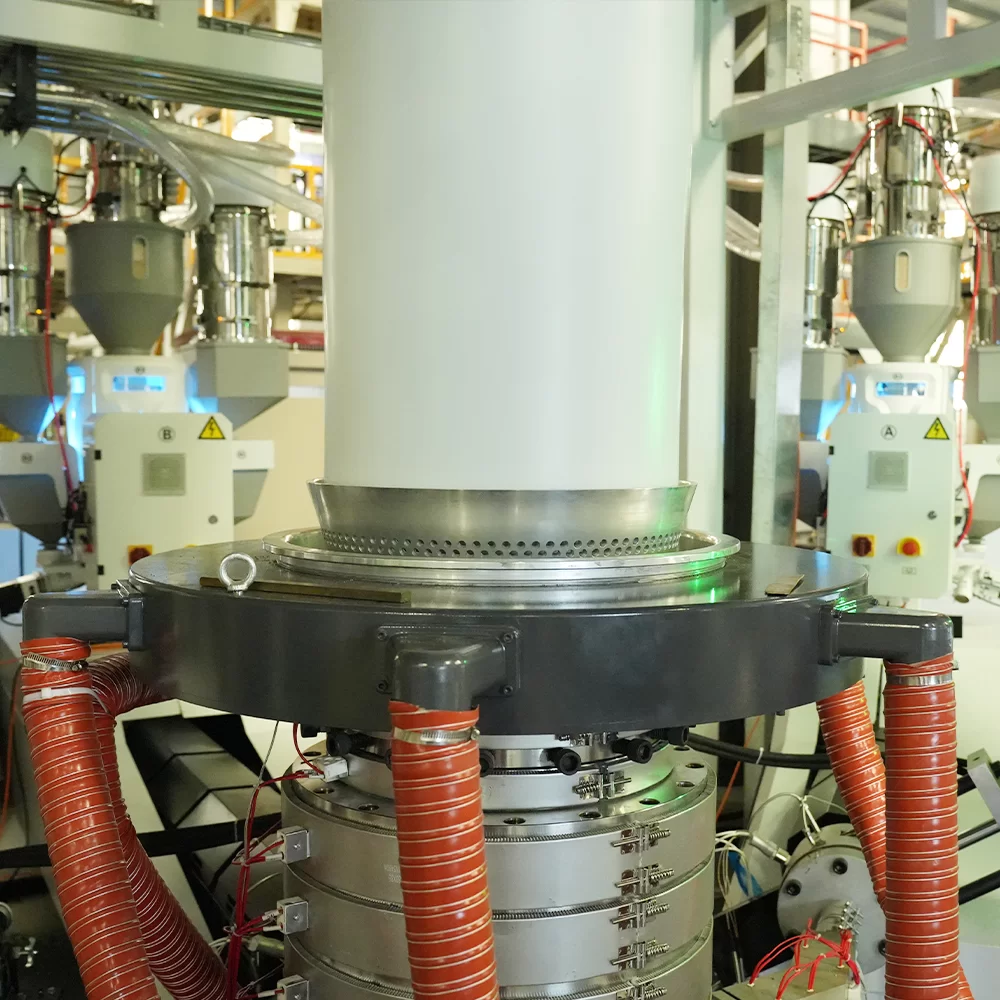

Die diameter

Φ300mm

Φ350mm /400mm

Φ500mm


Above parameters only for reference, could be customized according to customer needs, detailed data pls check actual object
